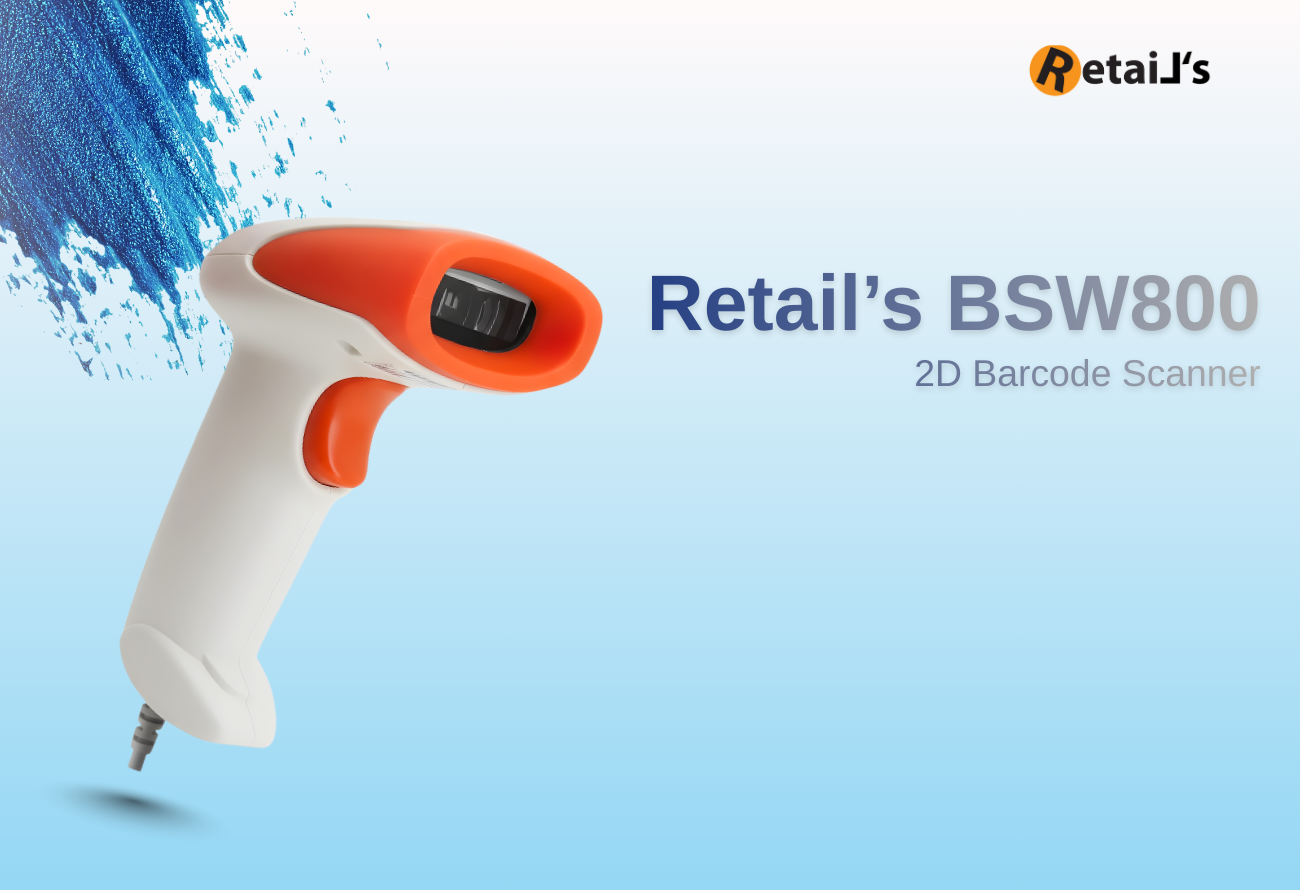

Retail’s BSW-800 2D Barcode Scanner

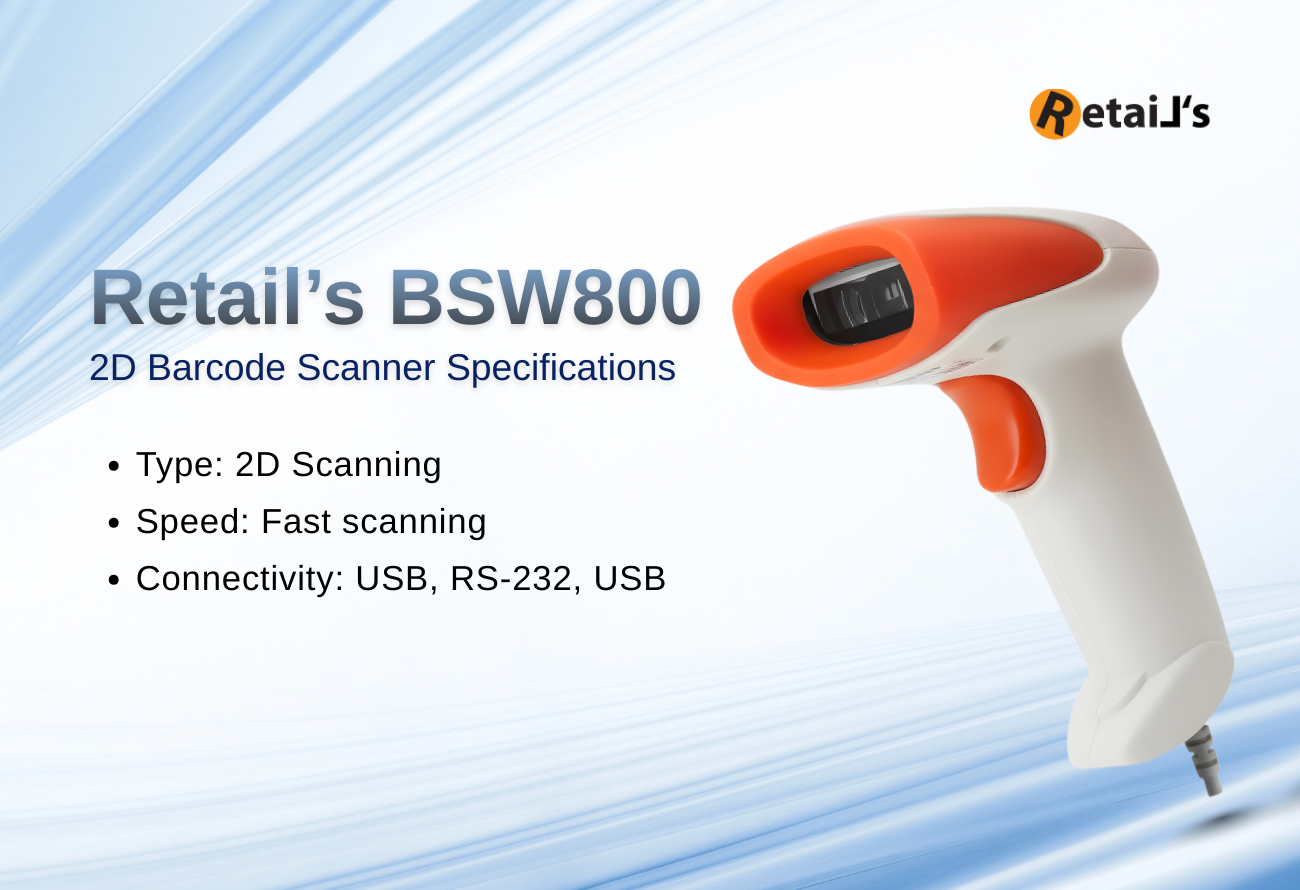

Technical Specification
Product Model
|
BSW800 |
|---|---|
| Sensor |
CMOS |
| Pixels |
640*480 |
| Illumination |
White light |
| Aiming |
Red light |
| Recognizing Precision |
≥4mil |
| Depth of Field |
EAN-13：30-200mm |
| Barcode Sensibility |
Pitch±45º Tilt360º Skew±45º |
| Field of view |
Horizontal: 40°, vertical: 30° |
| Relative Contrast Value |
≥25% |
| Dimension |
100*68*165 |
| Weight |
135g |
Interface
|
RJ-45 crystal head |
| Housing Material |
PC+ABS |
| Notification |
Buzzer, LED light |
| Interfaces |
RS-232 serial interface |
| Trigger Method |
Keyboard recognition Induction recognition Continuous recognition |
| Operating Voltage |
5VDC±10% |
| Operating Current |
Standby: 50mA Working: 230mA |
| Working Temperature |
-20–50°C |
| Storage Temperature |
-40–70°C |
| Humidity |
5% to 95% (non-condensing) |
| ESD |
±4Kv Contact Discharge ±8Kv Air Discharge |
| Drop |
1.2m |
| Environmental Sealing |
IP42 |
| Certifications |
CE FCC |
Retail’s BSW-800 2D Barcode Scanner
Retail’s BSW800 2D Barcode Scanner: Speed, Durability, and Universal POS Compatibility
Instant Efficiency for Your Business
In the fast-paced world of retail and inventory management, speed and accuracy are non-negotiable. The Retail’s BSW800 2D Handheld Barcode Scanner is your essential tool, engineered to eliminate bottlenecks and reduce checkout times instantly. Featuring advanced CMOS imaging technology, the BSW800 is built not just for speed, but for durability and seamless integration into any existing Point-of-Sale (POS) system.
Whether you are processing transactions at a busy counter or managing complex inventory in a demanding environment, the BSW800 ensures every scan is fast, accurate, and reliable—even on damaged barcodes or digital screens.

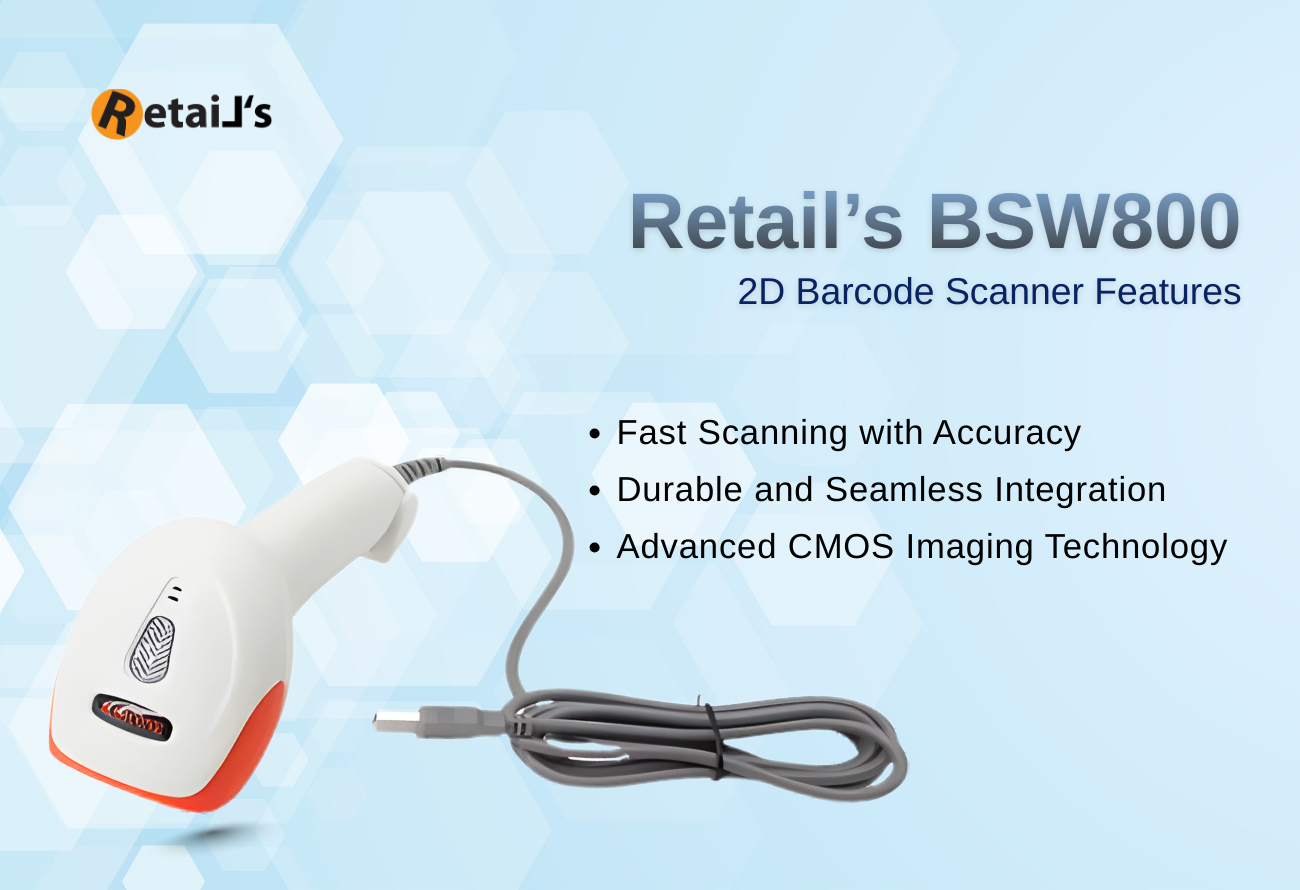

Key Features at a Glance
| Feature | Benefit |
| Decoding Capability | Reads all standard 1D and 2D codes (QR, Data Matrix, PDF417). |
| CMOS Sensor | Rapid scanning speed and high precision (≥4mil) on every attempt. |
| Interfaces | Plug-and-play USB, RS-232, and USB Virtual Serial for instant setup. |
| Durability | IP42 environmental seal and 1.2m drop resistance to survive daily use. |
| Design | Lightweight, ergonomic grip for anti-fatigue use during long shifts. |
| Warranty | Backed by an 18-Month Product Warranty for peace of mind. |
Unmatched Scanning Performance
The core of the Retail’s BSW800 handheld barcode scanner is its high-performance CMOS imaging chip. Unlike older scanners, this technology guarantees swift and reliable reading across all modern barcode formats.
-
Reads Any Code, Any Surface: Effortlessly capture traditional 1D codes (UPC, Code 128) as well as complex 2D codes (like QR Codes, Data Matrix, and PDF417). Scan directly from printed labels, paper documents, or customer smartphones and tablets.
-
Precision Decoding: The BSW800’s enhanced decoding algorithm handles wrinkled, faded, or poorly printed barcodes without requiring multiple attempts, keeping your queue moving.
Built for Real-World Durability
The Retail’s BSW800 is a robust scanner designed to withstand the rigors of commercial and industrial settings:
-
Tough Construction: With an IP42 rating, the scanner is protected against dust and water ingress, making it suitable for retail shops, damp storage areas, and clinical environments.
-
Drop-Tested Reliability: Built to absorb impact, the BSW800 can withstand drops from up to 1.2 meters, ensuring its longevity and reducing replacement costs.
-
Ergonomic Comfort: The sleek, balanced handle and lightweight design prevent hand fatigue, even during high-volume scanning periods.
Seamless Integration for POS Systems
Forget complicated setup procedures. The BSW800 is truly plug-and-play and offers the flexibility needed for diverse operational requirements:
-
Universal Compatibility: Connects easily via USB (keyboard emulation), RS-232 serial, or a USB Virtual Serial Interface, ensuring compatibility with virtually all major POS software and legacy systems.
-
Modes of Operation: Supports manual trigger, automatic induction (hands-free), and continuous scanning modes to suit checkout counters and back-end inventory tasks.
Ideal Applications
The BSW800 is a trusted choice for businesses requiring fast and reliable data capture, including:
