Retail’s BS 721 2D Barcode Scanner

Technical Specification

Product Model	BS-721
Pixels	640p (H) x 480p (V)
Light Source	Aiming: 617 nm LED; Illumination: 6500K LED
Field of view	40° (H) x 32° (V)
Scanning Performance	360° Roll, ±65° Pitch, ±60° Yaw
Print Contrast	25% Minimum Reflective Difference
Supported 2D Codes	PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.
Supported 1D Codes	UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.
1D Minimal Resolution	4mil
Decode Ranges	Code 39 (5mil): 30mm-90mm; UPC-A (13mil): 40mm-170mm
Operating Voltage	5 VDC
Operating Current	300mA
Interface	USB, RS232
Dimension	175mm x 83mm x 70mm
Weight	120g
Working Temperature	0℃~50℃
Storage Temperature	-40℃~70℃
Humidity	0%~95% Relative Humidity (No Condensation)
Drop Resistance	1.5m (5′) Drop Protection
Environmental Autoimmunity	100,000 Lux
Applications	Ideal for retail, logistics, warehouses, and industrial environments.

Visual Overview
Product Overview

Visual Overview

Product Overview

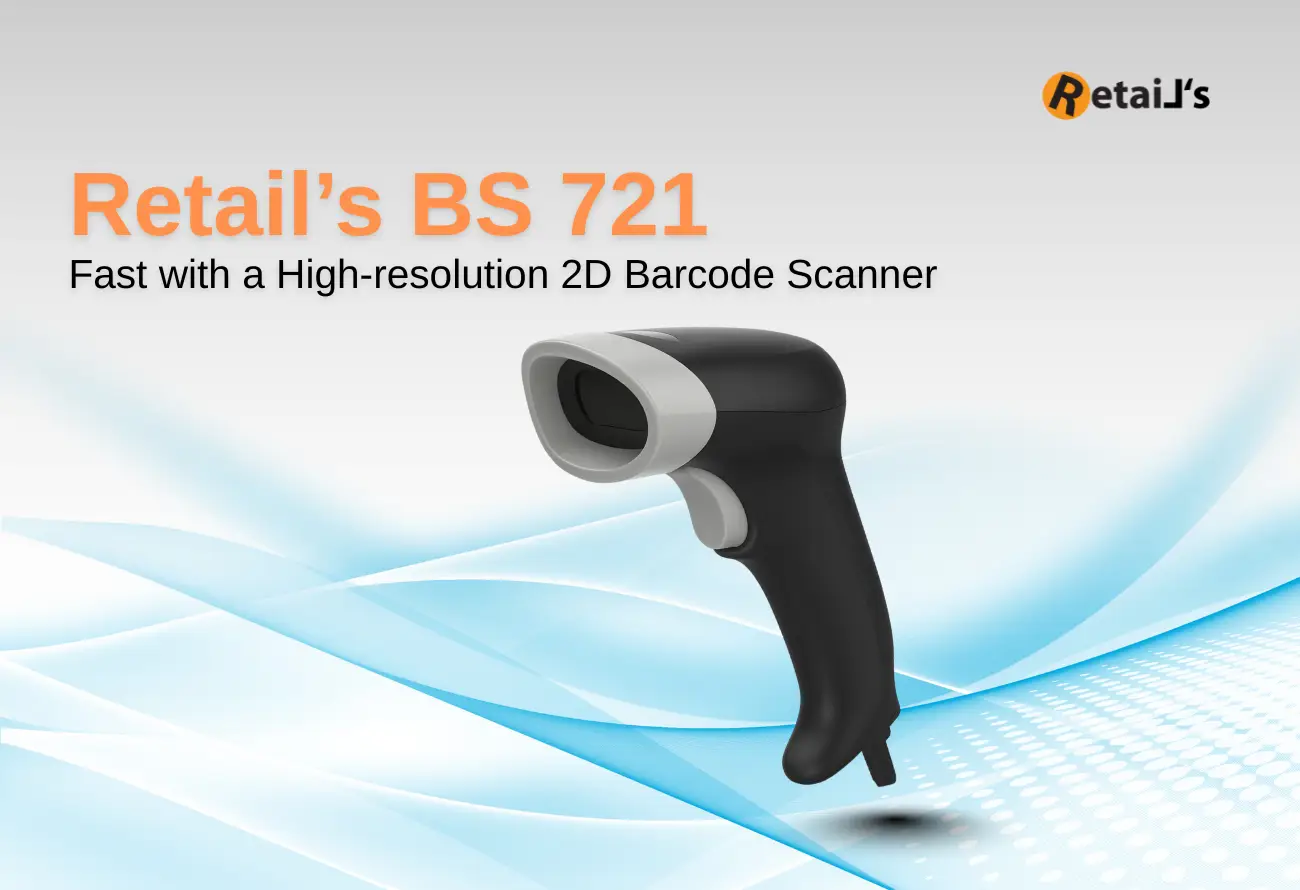

Retail's BS-721 Barcode Scanner

Boost Your Retail Efficiency with the Retail’s BS-721 2D Barcode Scanner

In the fast-paced retail environment of Bangladesh, speed and accuracy are everything. The Retail’s BS-721 is engineered to meet the demands of modern Super Shops, Pharmacies, and Fashion Outlets. Whether you are scanning standard product barcodes or managing digital inventory, this scanner delivers instant, error-free results.

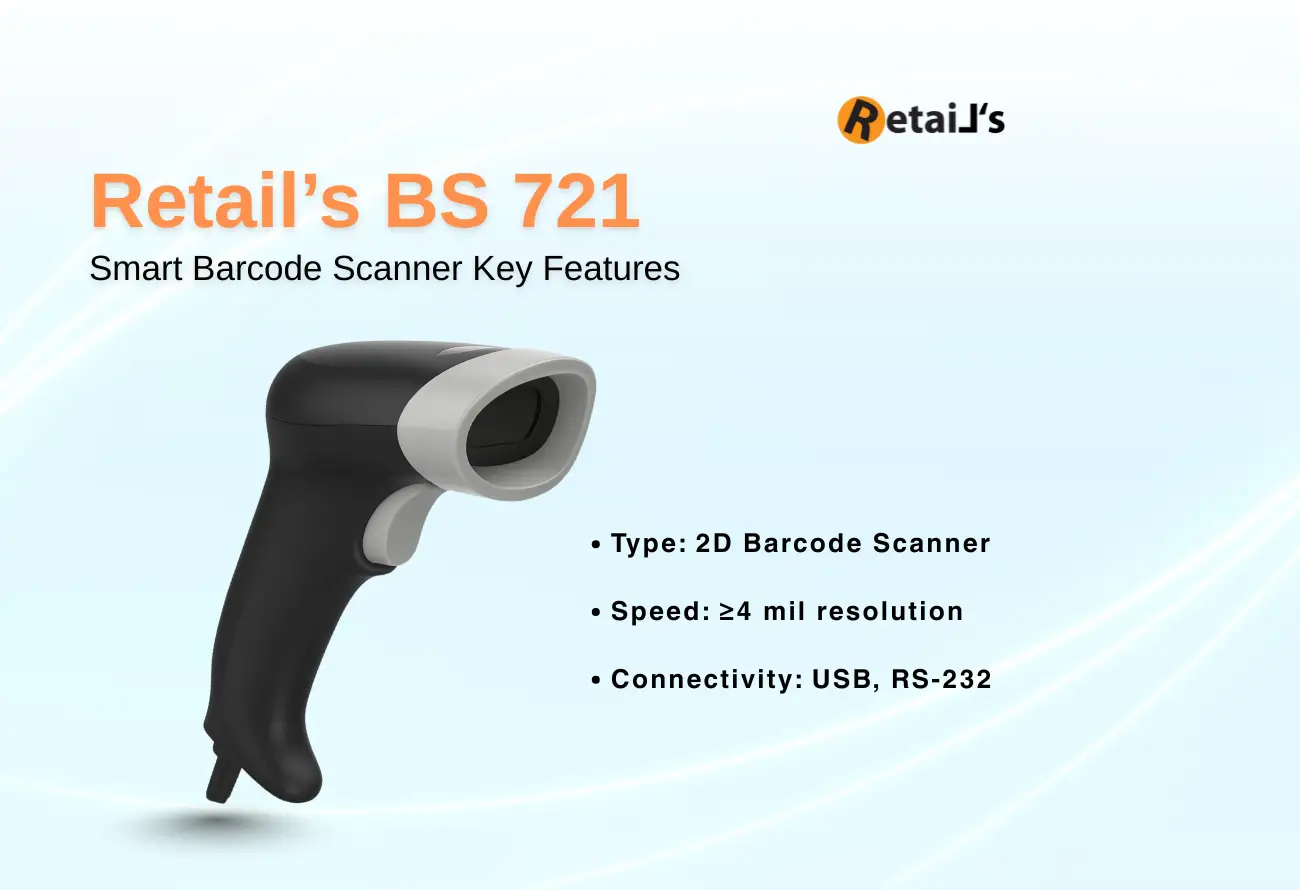

Powerful Features for Better Scanning, POS, Inventory & More

This scanner uses 2D scanning technology, so it can read most barcode types—both printed and on screens. It works fast with a high-resolution of ≥4 mil and connects through USB or RS-232 cables, so it fits easily into most POS systems. The BS 721 makes scanning fast and smooth, helping your staff serve customers quickly within accuracy and also manage inventory without errors. It’s built to last and gives you accurate results every time, that’s why many businesses first choose it.

Why Choose a 2D Barcode Scanner over a 1D Laser Scanner?

Traditional laser scanners can only read printed lines. The Retails BS-721 uses advanced CMOS Imaging Technology, allowing it to read 2D QR Codes and barcodes displayed on digital screens. This is essential for modern businesses accepting digital payments (like bKash, Nagad, Upay) or managing digital coupons.

Key Benefits for Your Business:

Lightning Fast Checkout: With a high-speed decoding chip, it captures codes instantly, reducing customer waiting lines during peak hours.
Reads Damaged Barcodes: Intelligent image processing allows it to read faded, scratched, or wrinkled barcodes that ordinary scanners miss.
Ergonomic & Rugged: Designed for heavy daily use, the lightweight handle reduces staff fatigue, while the shock-proof build survives accidental drops from counter height.
Plug-and-Play Simplicity: simply plug the USB cable into your POS Terminal or Laptop, and you are ready to sell. No complex driver installation is needed.
